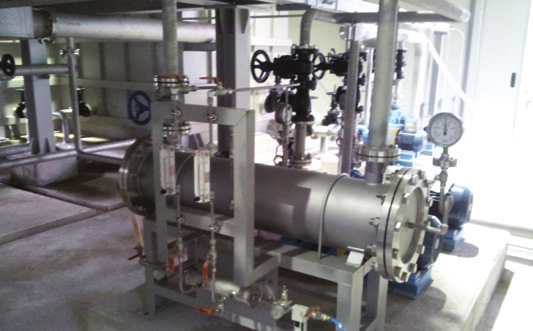

ADR立式空氣溶解反應釜

ADR立式空氣溶解反應釜，采用高壓旋切的方式，通過旋切的離心力，將水珠分散成離子狀水分子，然后同同樣高壓進來的氣體混合，最大限度的溶解直至飽和狀態，隨后在釋放器的作用下突然失能，釋放出微納米氣泡。

ADR系統有效去除廢水中的 TSS, FOG 和 BOD/COD（與傳統 DAF 相比, 高達100%）

與傳統的 DAF 相比：

• 處理效果更佳： 承諾優于任何 DAF

• 適應性強：能夠適應高負荷 (無論是 800PPM 還是 5,000 PPM)，以及更高的處理流量 (相同單元能夠提高 30%~ 80% ).

• 污泥更干燥： 污泥較 DAF 更加干燥 (8%-13%, 沉淀分離后超過20%).

• 占地更小：占地小于 DAF (10% 至 90%)；

• 化學藥劑用量更少：化學藥劑用量小于 DAF (20% 至 80%)；


在 DAACH，我們的格言是“為何在其懸浮性不好的情況下還勉強選擇 DAF 呢”.....購買 DC-DAF吧！

DAACH-DAF系統是市場是最好的浮選系統.

GEM SYSTEM - BEST PRIMARY TREATMENT ON THE MARKET

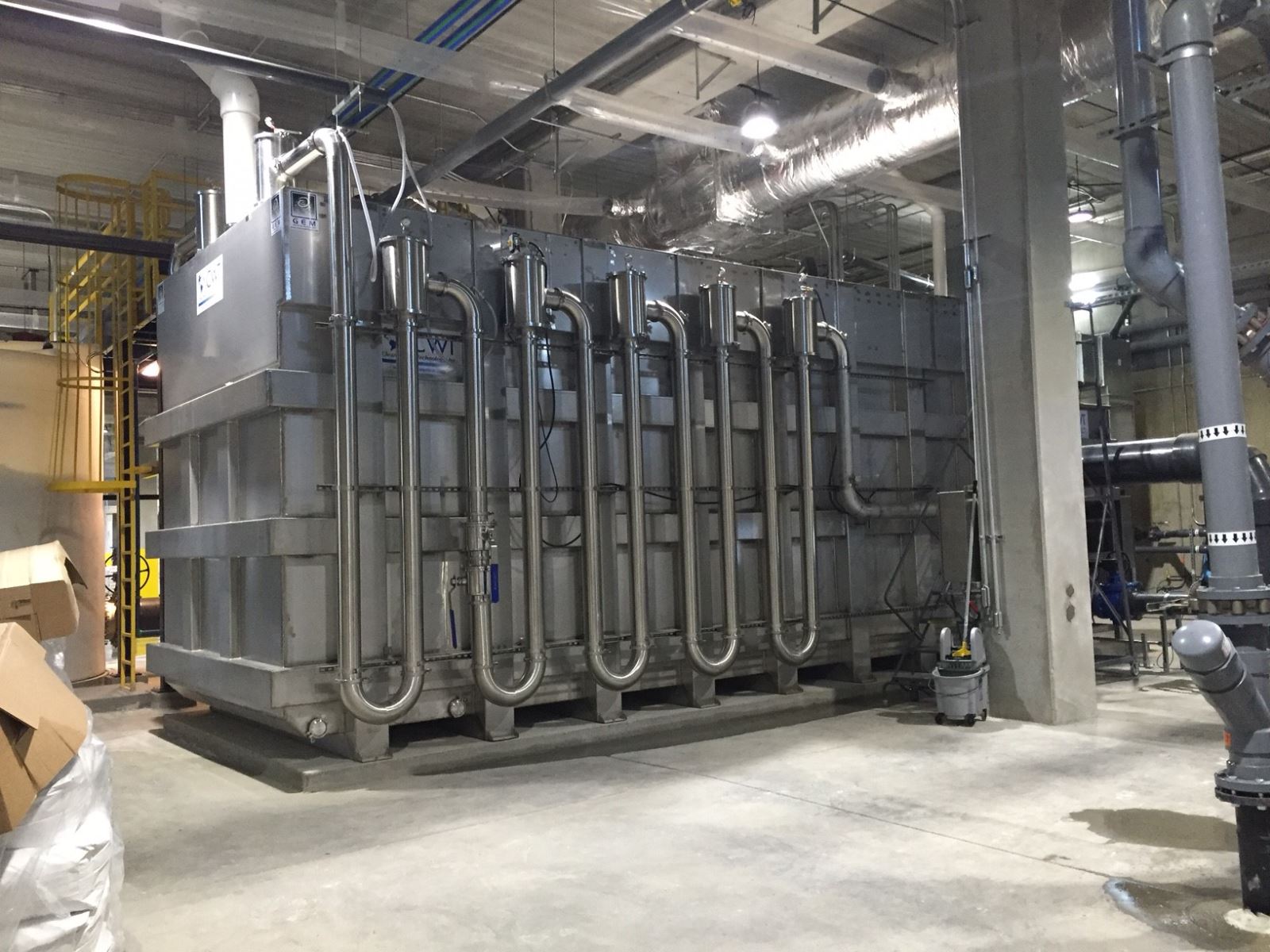

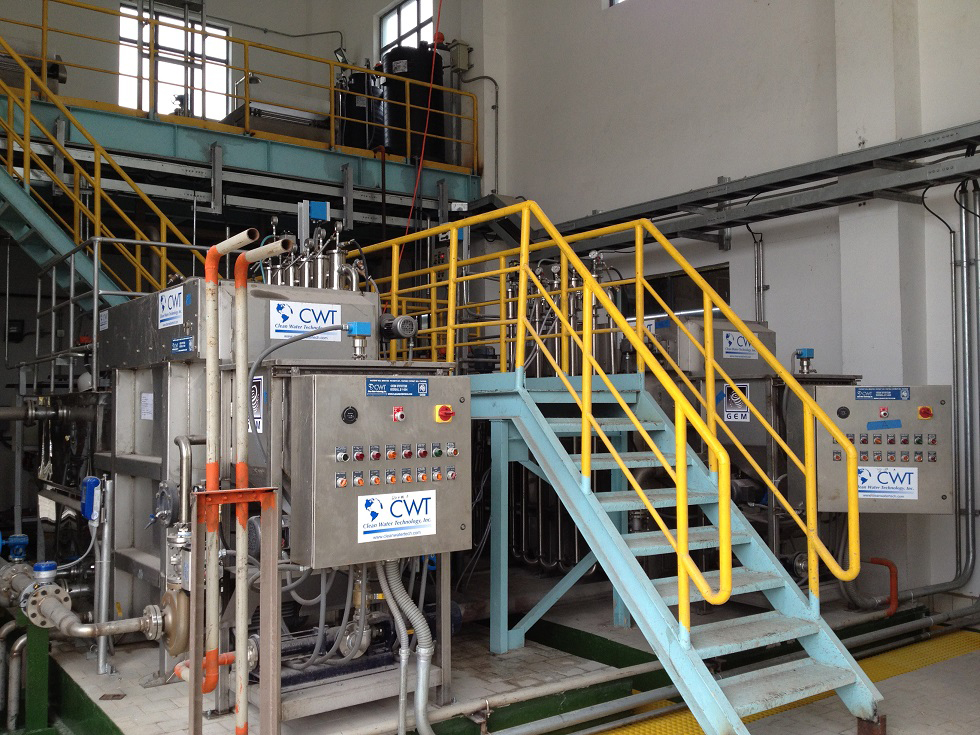

The Gas Energy Mixing System (GEM?) is CWT's innovative flocculation and floatation unit that has a unique approach and is the replacement to traditional DAF (Dissolved Air Flotation) treatment. With its patented approach the GEM System shows it’s superiority compared to any DAF.  Unlike traditional DAF’s relying on aeration tanks and particle collision method to float particles, CWT’s Gas Energy Mixing (GEM) System dissolves air into 100% of the waste stream and separates solids and liquids using CWT’s patented GEM Technology allowing to effectively entrain air into the floc as it is being formed, while uncoiling polymers without shearing them.

The GEM System significantly reduces TSS, FOG and BOD/COD from processed wastewater (up to 100% compared to other conventional DAF's.)

The GEM System can generate better results, handle a much greater contaminant loading, adapt to flow changes and produce much drier solids with a significantly smaller footprint and less chemical usage than conventional DAF systems.

CWT'S GEM SYSTEM ADVANTAGES:

• Best results – can achieve compliance – better results than any DAF.

• Adaptability - can adapt to higher loadings (no matter if loadings are 800mg/lt or 5,000 mg/lt) and to higher flows (same unit will treat 300 gpm or 800 gpm).

• Less chemicals - uses less chemicals than any DAF (by 20 to 80%).

• Smaller Footprint – needs less space than any DAF (by 10 to 90%).

• Drier Sludge – Due to its technology the sludge is much drier than a DAF (8 to 13% of the beach and over 20% after decanting).

OUR MOTTO HERE AT CWT IS " WHY SETTLE FOR A DAF WHEN IT DOESN'T ALWAYS FLOAT"..... BUY A GEM!

The GEM System is the best flotation system in the market.
